Diesel Camshaft & Head Rebuild Installation Set – VAG Group 1.2–4.2 TDI Common Rail (Part No. A-VWCH)
Product Overview & Core Use
This camshaft and cylinder head rebuild installation set is specifically designed for fitting camshafts into cylinder heads during head re-build on VAG Group vehicles and Porsche with diesel Common Rail engines** – 1.2, 1.6, 2.0, 2.7, 3.0, 4.0, 4.2 TDI.
Key applications (from product description):
Covers engines with a belt or chain driving one camshaft, with interconnecting spring-loaded gears driving the second camshaft. The set includes essential tools for correctly aligning the camshafts to each other and to their carrier.
Makes & Models (strictly from product label)
Audi
- A1 (2010–2015), A3 (2008–2013), A3 Cabrio (2008–2013)
- A4 Quattro (2004–2008), A4 (2005–2008), A4 Cabrio (2005–2009), A4 (2007–2015), A4 Quattro (2007–2015), A4 Quattro (2008–2015), A4 Allroad (2009–2015)
- A5 Coupe/Cabriolet (2007–2015), A5 Sportback (2009–2015)
- A6 (2005–2011), A6 Allroad (2006–2011), A6 Quattro (2005–2011), A6 (2008–2011), A6 (2011–2015), A6 Allroad (2012–2015), A6 Quattro (2011–2015)
- A7 (2010–2015)
- A8 (2003–2010), A8 (2005–2010), A8 (2010–2015)
- Q3 (2011–2015)
- Q5 (2008–2015)
- SQ5 (2013–2015)
- Q7 (2007–2015)
- TT (2008–2015)
Seat
- Altea / Altea XL (2009–2015)
- Exeo (2009–2013)
- Leon (2009–2013)
- Toledo (2009–2010)
- Ibiza (2009–2015)
- Alhambra (2010–2015)
Skoda
- Fabia II (2010–2014)
- Octavia II (2009–2013)
- Praktik (2010–2015)
- Rapid (2012–2015), Rapid Spaceback (2013–2015)
- Roomster 5J7 (2010–2015)
- Superb II (2008–2015)
- Yeti (2009–2015)
Volkswagen
- Golf V Estate (2007–2009), Golf Plus (2009–2015), Golf VI (2009–2013), Golf VI Estate (2009–2013), Golf VI Cabrio (2011–2015)
- Jetta (2008–2011), Jetta (2009–2011), Jetta (2011–2014), Jetta (2011–2015)
- Passat (2009–2011), Passat CC (2008–2012), Passat (2011–2015), Passat Alltrack (2012–2015)
- Polo (2009–2015)
- Touran (2010–2015)
- Tiguan (2007–2015)
- Touareg (2005–2010), Touareg (2010–2015)
- Sharan (2010–2015)
- Phaeton (2004–2015)
- Scirocco (2008–2015)
- Amarok (2010–2015)
- Caddy / Caddy Maxi (2010–2015)
- Crafter (2011–2015)
- Transporter (2009–2015)
- Beetle / Maggiolino (2011–2015)
- Eos (2008–2015)
Engine Codes：
– 1.2 – CFWA
– 1.6 – CAYA, CAYB, CAYC, CAYD, CAYE, CLNA
– 2.0 – CAAA, CAAB, CAAC, CAAD, CAAE, CAGA, CAGB, CAGC, CAHA, CAHB, CBAB, CBAC, CBBA, CBBB, CBDA, CBDB, CBDC, CCHA, CCHB, CDBA, CDCA, CEGA, CFCA, CFFA, CFFB, CFFD, CFFE, CFGB, CFGC, CFGD, CFHA, CFHB, CFHC, CFHD, CFHE, CFHF, CFJA, CGLA, CGLB, CGLC, CGLD, CGLE, CJAA, CJCA, CJCB, CJCC, CJCD, CKTB, CKTC, CKUB, CKUC, CLCA, CLCB, CLJA, CLLA, CMEA, CMFA, CMFB, CMGB, CNEA, CNFA, CSHA
– 2.7 – BPP, BSG, CAMA, CAMB, CANA, CANB, CANC, CAND, CGKA
– 3.0 – ASB, BKN, BKS, BMK, BNG, BUG, BUN, CAPA, CARA, CASA, CASB, CASC, CASD, CATA, CCLA, CCMA, CCWA, CCWB, CDTA, CDTB, CDUC, CDUD, CDYA, CDYB, CDYC, CEXA, CGQB, CJGA, CJGC, CJGD, CJMA, CKVB, CKVC, CLAA, CLAB, CLZB, CMHA, CNRB, CRC, CRCA, M05/9D (CAS), M05/9E, M05/9E (CRCA), M05/9E (CRCB)
– 4.0 – ASE
– 4.2 – BTR, BVN, CCFA, CCFC, CDSB, CKDA

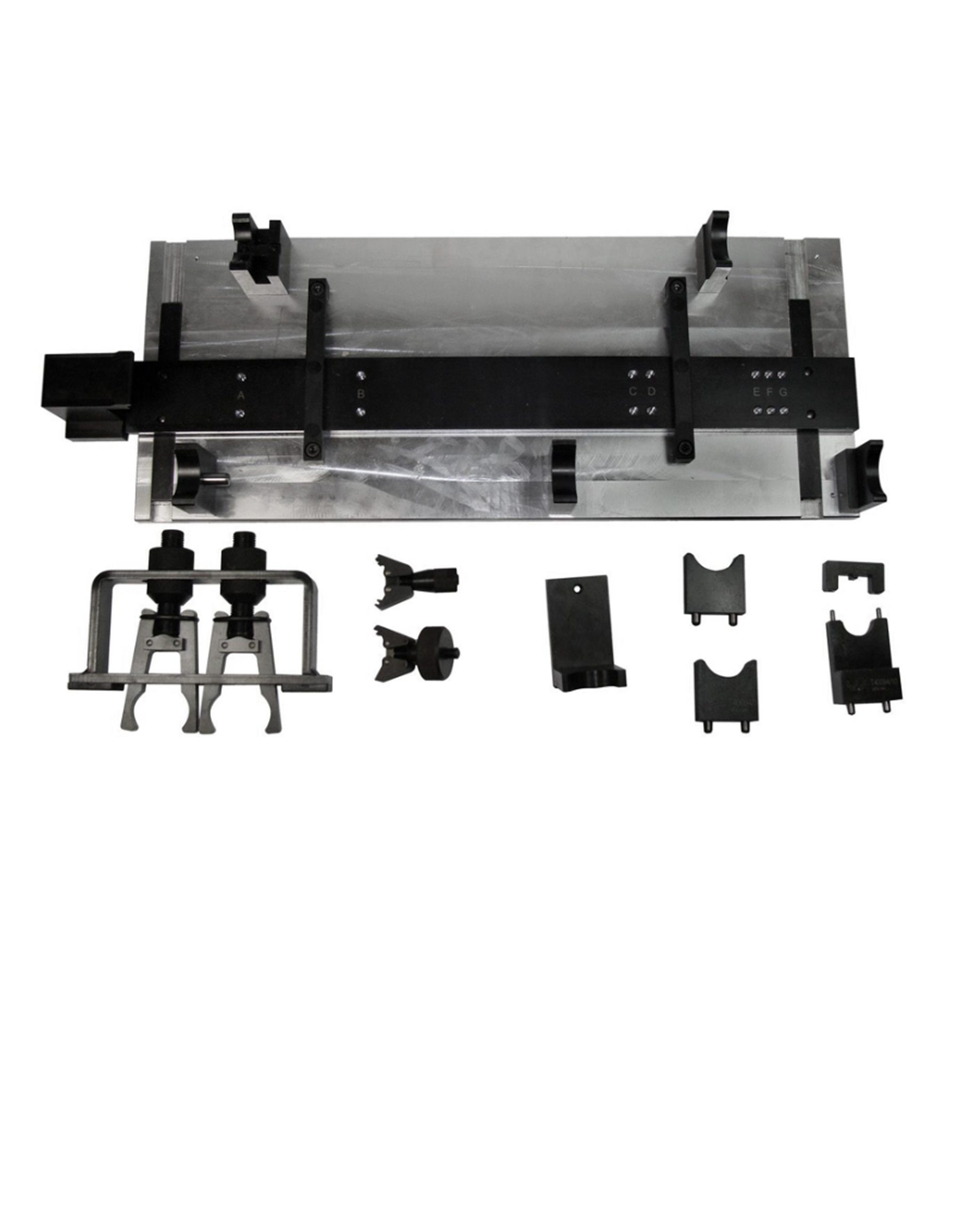

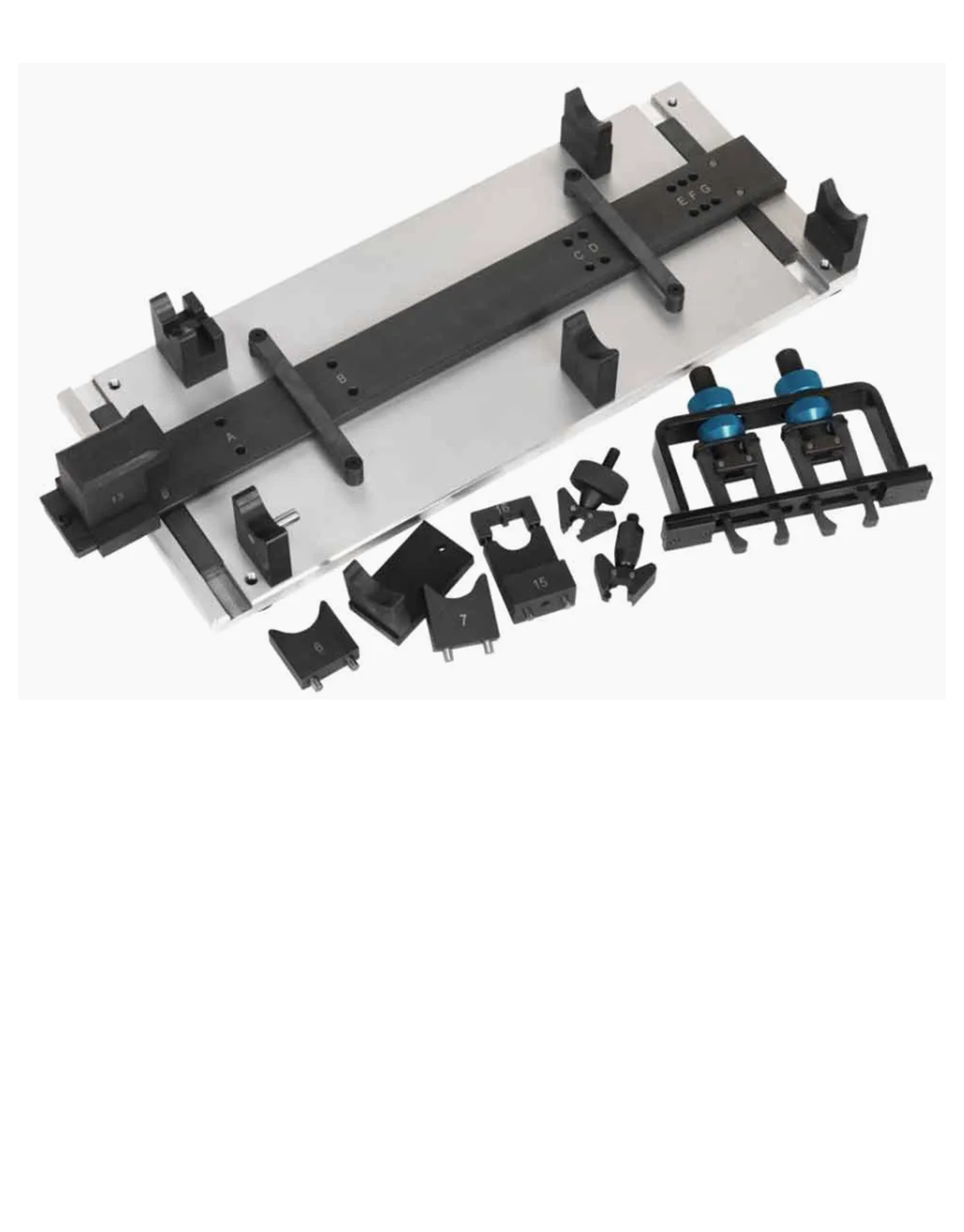

Set：
Camshaft assembly frame | Main fixture for cylinder head rebuilding |
Camshaft setting blocks (1.2 / 1.6 / 2.0) | Position camshafts accurately by displacement |
Camshaft / carrier retaining tool | Holds camshaft in carrier during assembly |
Camshaft split gear positioning tool | Aligns spring-loaded split gears |
Camshaft hub holding tool | Secures hub for torque application |
