How to Use BMW N43 Engine Timing Tool Kit (Step-by-Step Guide)

What is BMW N43 Timing Tool Kit?

The BMW N43 timing tool kit is a specialized set designed to lock and align the camshaft and crankshaft when servicing BMW N43 engines. It ensures precise timing during maintenance and prevents engine damage.

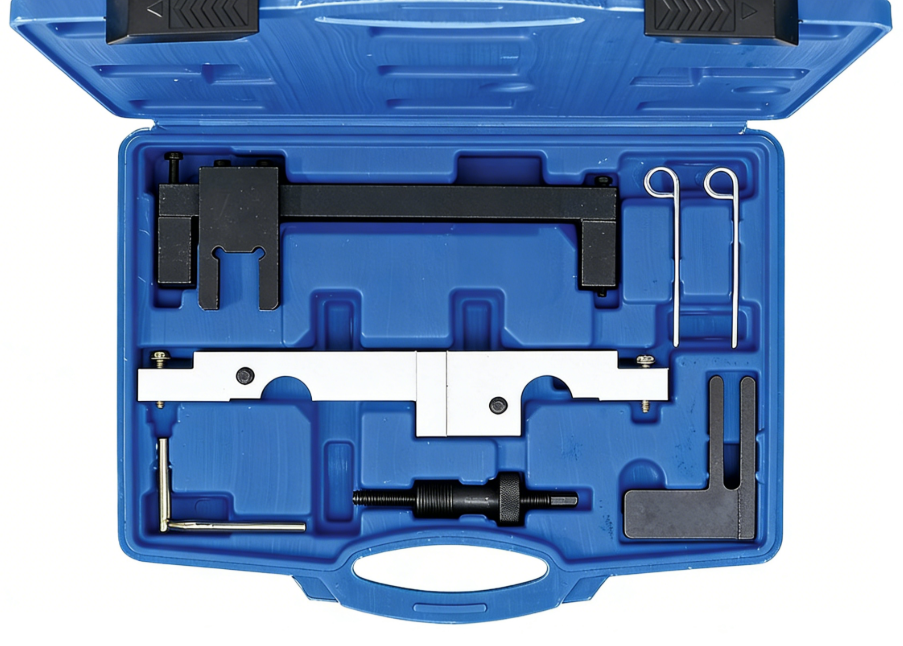

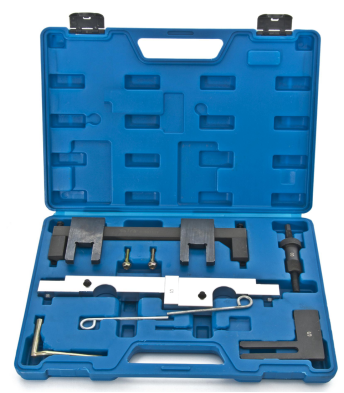

What is Included in the Kit

• Camshaft locking tools

• Crankshaft alignment pin

• Timing alignment bar

• Fixing bolts and accessories



BMW Timing Tool Set for use on N43 Chain Driven Engines.
Includes Vanos sensor alignment tool
1 Series : E81 | E82 | E87 | E88 ( 06 -12 )
3 Series : E90 | E91 | E92 | E93 ( 06 -12 )
5 Series : E60 | E61 ( 07-10 )

Step-by-Step Guide to Using BMW N43 Timing Tool Kit

Step 1: Prepare the Engine
Disconnect the battery and remove necessary engine covers.

Step 2: Locate Timing Marks
Find the camshaft and crankshaft timing marks and rotate the engine to the correct position.

Step 3: Install the Crankshaft Locking Pin

Insert the locking pin to secure the crankshaft.

Step 4: Fix the Camshaft Locking Tool
Install the camshaft locking tools to hold the camshaft in position.

Step 5: Align Using the Timing Bar
Use the alignment bar to ensure precise positioning.

Step 6: Perform Maintenance
Carry out timing chain or belt replacement.

Step 7: Remove Tools Carefully
After finishing, remove all tools and reassemble components.

Common Mistakes to Avoid

• Using incorrect tool sizes

• Not locking crankshaft properly

• Misalignment before tightening

• Skipping double-check

Why Use a Professional Timing Tool Kit

Using a professional BMW N43 timing tool kit ensures:

• Accurate engine timing

• Reduced risk of engine damage

• Improved repair efficiency

Conclusion

The BMW N43 engine requires precise timing alignment, and using the correct timing tool kit is essential. If you are looking for reliable automotive timing tools, feel free to contact us for wholesale and OEM solutions.
